Hyper Washer〔 HW-10W 〕

【Advantage】

“Long distance Jet”

Effective salt removal work is possible with a reach of micro bubble mist of 10 m or more.

“Low Pressure Washing”

The low-pressure jet micro bubble mist safely and easily removes the salt that is adhering to the clearance of aircraft and vehicles.

【Recommended uses】

• Prevention of salt damage to aircraft, vehicles, and vessels operating in maritime and coastal areas.
• Prevention of salt damage of various steel structures in coastal areas.
• Others Salt removal to prevent salt damage.

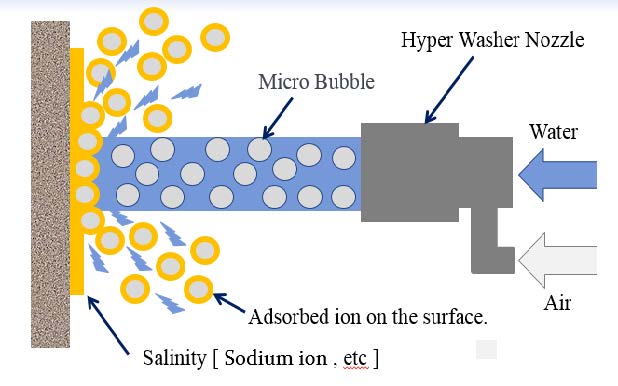

1. Washing Theory of The Micro-Bubble

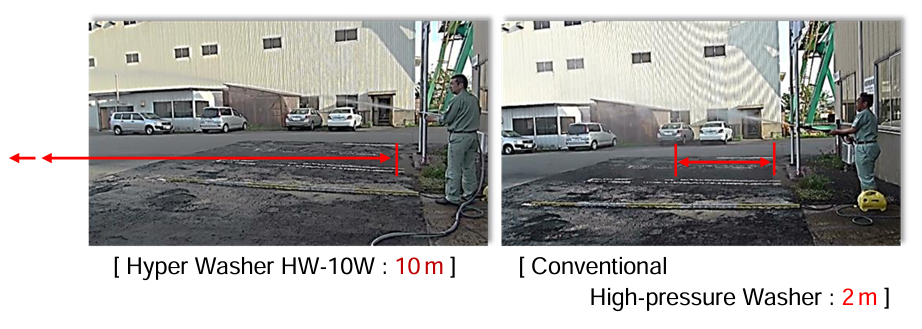

2. Comparison of effective cleaning distance

At residual salinity of 5 mg/m² (ppm) or less

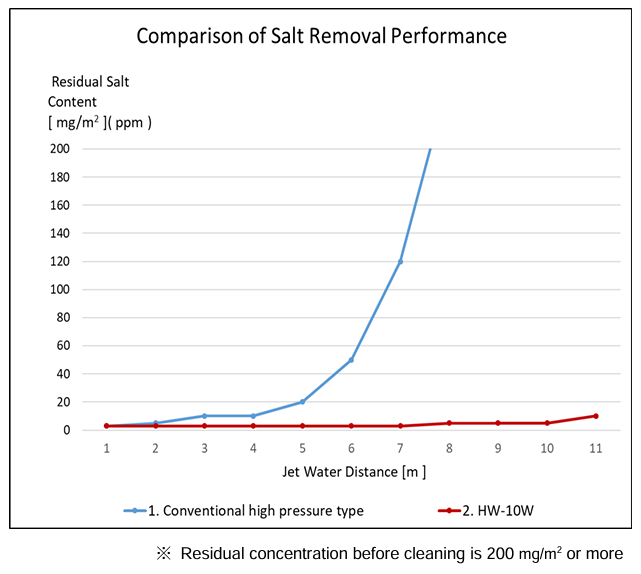

3. Validation of Salt Removal Effect by Injection Distance

As a result of confirming the salinity residual concentration for each washing mist distance, it was confirmed that the initial removing ability was maintained up to 7 m as shown in the following graph, and the removing ability was maintained up to 10 m or more.

Hyper Washer “HW-10W”

Mist distance [ m ]	0.3	1	2	3	4	5
Jet pressure [ MPa ]	0.6	0.5	0.4	0.3	0.2	0.1

0.1[Mpa] ≒ 1.02 [kgf/cm²] ≒ 14.3 [Psi]

0.6[Mpa] ≒ 6.12 [kgf/cm²] ≒ 85.8 [Psi]

The Injection Pressure at the tip of the Nozzle

Conventional high-pressure Washer	10.0 MPa = 1430.0 Psi
Hyper Washer “HW-10W”	0.6 MPa = 85.8 Psi

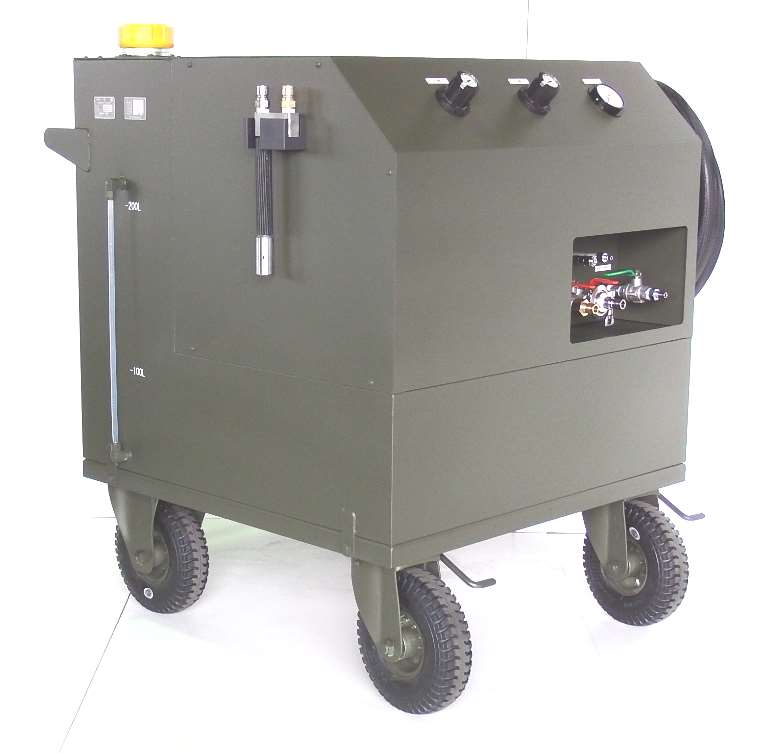

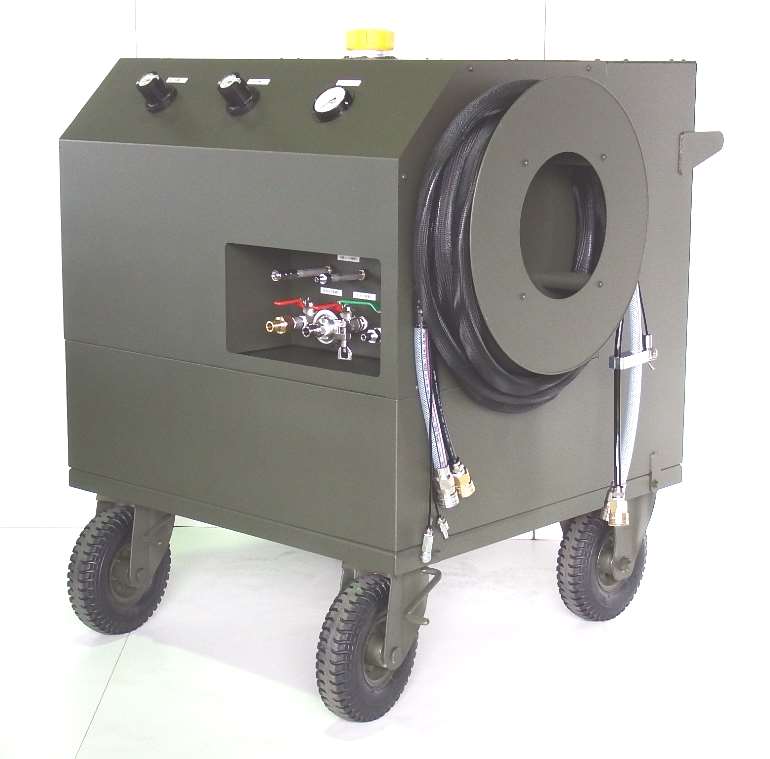

4．Specifications Hyper Washer “HW-10W”

• Effective Washing Distance：12m
• Micro-bubble Diameter：50 μm (avg)
• Water Consumption：28 L/min (Max)
• Injection Pump : Diaphragm Pump
• Pneumatic Source：0.6～1.0 MPa
• Water Tank Capacity：200L (Integrated Tank)
• Nozzle Gun Connection Hose: 5 m～20m
• Electric Power Supply：Not required
• Body Dimensions：W 1.2 m x L 1.0 m x H 1.2 m
• Weight：275 Kgs (Net)

5. Main delivery results

• Japan Coast Guard [April, 2012]
• Japan Ground Self-Defense Force [March, 2017]
• Regional rescue air bases in several prefectures of Japan [2020]
